Overview

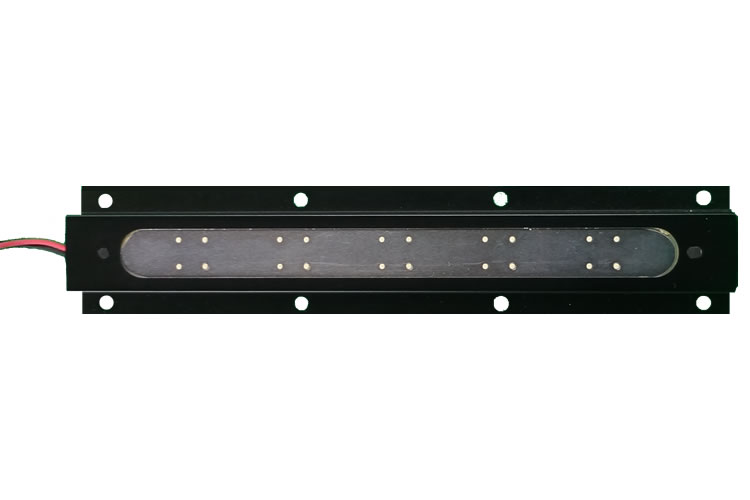

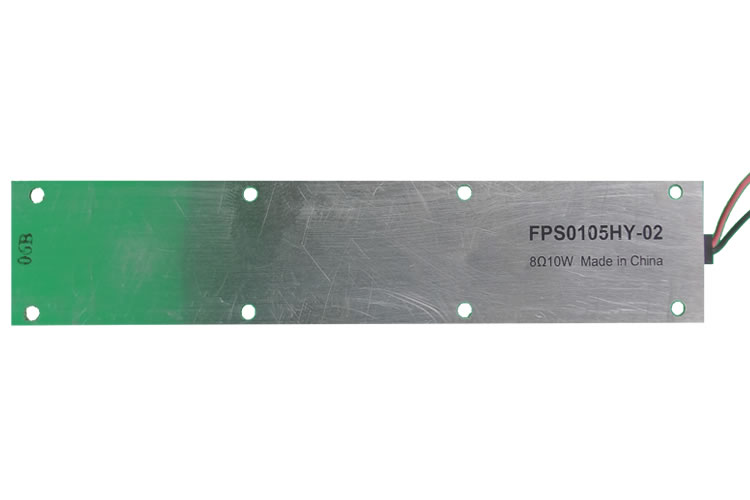

The 0105HY MCMA (Multi-Cell Micro-transducer Array) speaker is the first speaker to combine the mid and high frequency response of a planar transducer with a powerful neodymium exciter. Depending on the material or surface the speaker is mounted to the 0105HY can produce a very wide band of frequencies from 50Hz – 15kHz.

The 0105HY is built with an integrated frame for easy mounting. This speaker is excellent for applications where a typical speaker will not work and or a visible speaker will not do. Great for mounting to glass, wood and metal; whiteboards, posters and POS displays to name a few. Generally the stiffer and lighter the substrate is the better the performance.


Features

  • Planar technology combined with a low frequency exciter
  • Ultra thin and flat
  • Immediate transient response
  • Integrated mounting framework
  • Powerful neodymium motor
  • Wide frequency response
  • High resistance to moisture and temperature

Specifications

Input: 10 watts RMS (20 watts max)

SPL @ 1 watt/ .5 meter: 82dB +/- 3dB

Frequency Respopnse: *50Hz - 15kHz

Resonance Frequency: *50Hz - 15kHz

Impedance: 8 ohms

Dimensions Standard: L5.95" W1.1825" D.405"

Dimensions Metric: L150mm W30mm D10.2mm

Weight: 2.67 lbs/ 75 grams

Stereo/Mono: Mono

Number of Magnets: 5

Number of Voice Coils: n/a

Cutout: n/a

Depth: n/a


Frequency response and resonance is highly dependent upon the material the speaker is mounted to.
Specifications are subject to change at anytime without notice.
